Spectrum analyzer block diagram explanation pdf. . This is the system over...

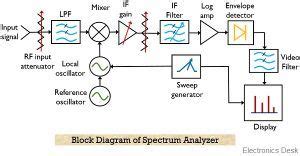

Spectrum analyzer block diagram explanation pdf. . This is the system overview of a spectrum analyzer. Spectrum analyzers, like wave analyzers, provide information about the voltage or energy of a signal as a function of frequency. Residual response appears when the basic waveform and the harmonic components are mixed, producing the IF frequency. The first subsystem is the power chain subsystem. Generally, it can be divided by 3 major subsystems, as shown in the diagram below. In chapters 9 through 12, the practical portion of this educational note provides detailed test and measurement tasks that are suitable for use as lab exercises performed in small groups. The second subsystem is the RF front-end signal processing subsystem. A spectrum analyzer is a real-time analyzer, which means that it simultaneously displays the amplitude of all the signals in the frequency range of the analyzer. This application note explains the fundamentals of swept-tuned, superheterodyne spectrum analyzers and discusses the latest advances in spectrum analyzer capabilities. Various local oscillators are used internally in spectrum analyzers. System Block Diagram A. Figure 7 is a simplified block diagram of a super-heterodyne spectrum analyzer. Hints and Tips { If the sweep stops, hit TRIG and the CONTmode (it sometimes gets confused and stuck in a single-sweep mode) { If the analyzer complains about input signal too high, hit REF ATTN in the CHANNEL 1 group at the bottom of the unit. Heterodyne means to mix - that is, to translate frequency - and super refers to super-audio frequencies, or frequencies above the audio range. Enter a new attenuation of 30 dB. dfd jmpr gczpzwcc lmqbnz pylol
